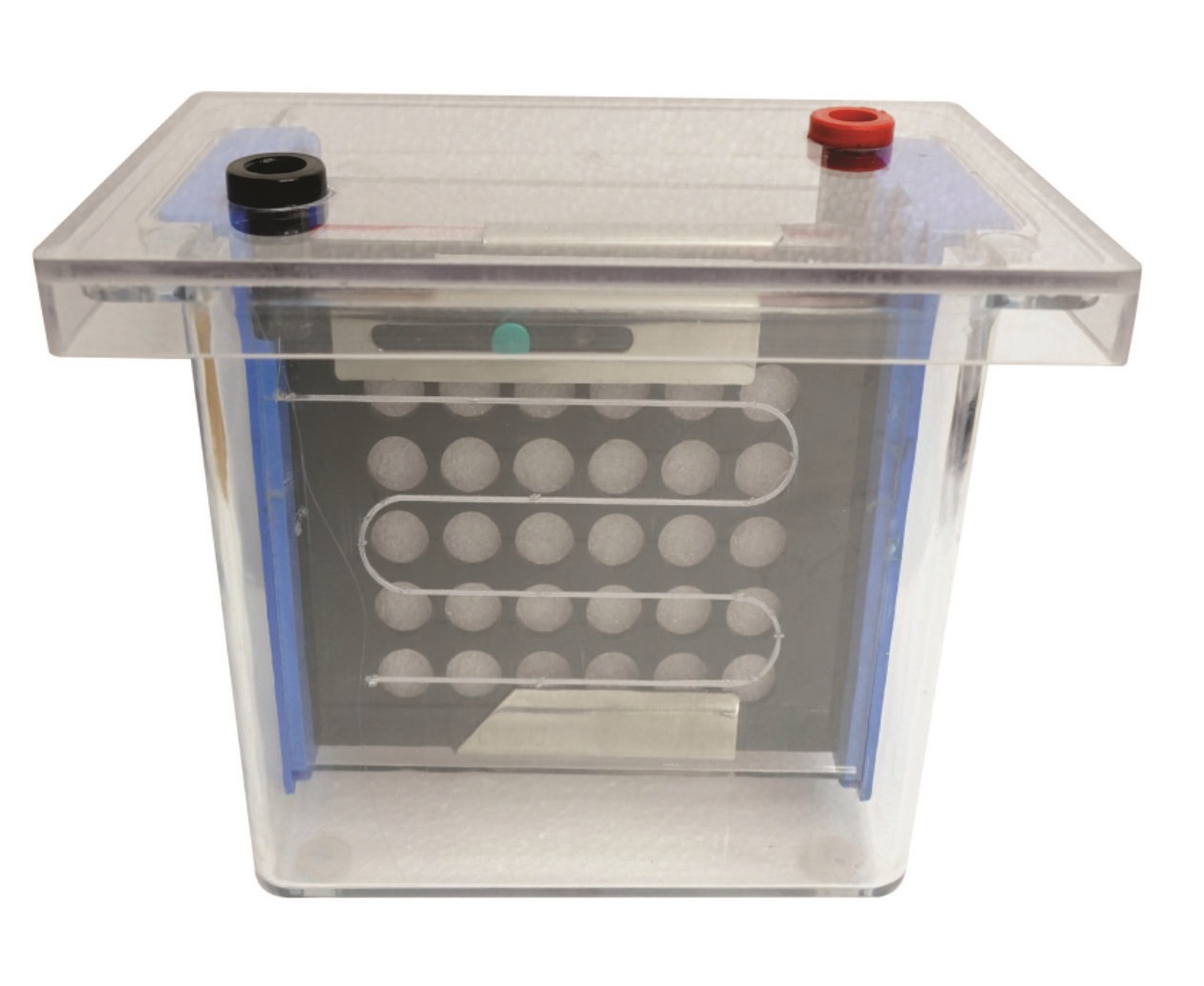

Western Blotting System
Western Or Immuno Blotting
- Laby Offers a complete range of Western Or Immuno Blotting is the transfer of separated Proteins in a gel to the surface of a thin support membrane matrix.
- The Proteins are bound and immobilized on the membrane.
- Southern and Northern blotting involves the transfer of separate DNA and RNA, respectively, from a gel to a membrane.
- To perform a transfer, the gel is layered next to a membrane and placed in a voltage gradient perpendicular to the gel.
- Negatively charged molecules will migrate out from the gel, move towards the positive electrode, and get deposited on the membrane.
- We offer all different type of models for different applications like Mini, Mini Dual, Midi, Midi Dual & Customized Wet Blots etc.
Advantages of Blotting Apparatus
Easy access of proteins or nucleic acids on a blot for further analysis. Faster analysis of proteins on the blots as protein diffusion is minimized.
Specifications
| Make | LABY |
| Model | WB-02 |
| Dimensions | 15 x 11.5 x 12cm (LxBxH) |
| Gel Holder Cassette | 2 Nos |
| Buffer Volume | 650 ml |
| Gel Size | 8 x 7 cm (2 Gels) |
| Connecting Cord | Red & Black (One Each) |
| Electrode Material | Platinum Anode (99.9% Pure) |
| No. of Platinum Electrodes | Anode and Cathode (One Each) |
| Foam Pad | 12 Nos. |
| Buffer Chamber with Safety Lid | 1 No. |
| Instruction Manual | 1 No. |
