Specifications

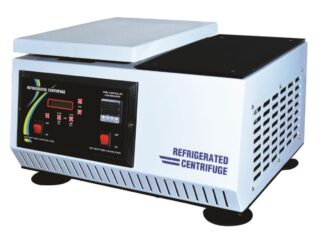

- Bench Top Model Refrigerated Centrifuge Machine
- Heavy duty C.R.C. construction finished with powder coating
- Stainless Steel centrifugal bowl for extra protection and easy cleaning.
- Fitted with well balanced brushless motor with electronic drive.
- 4 lines, 20 characters. LCD Display for set time, run time, set and run rpm, rcf and rotor identification.
- Digital Timer 1-99 minutes, lid lock and fast spin option
- Dynamic brake (automatic) and imbalance detector are provided.
- Selection of 3 acceleration + 4 deceleration profile.
- Microprocessor based. Programmable Speed Regulator from 2000 to 20000 in interval of 100 rpm
- Last test parameter recall and displays automatically on LCD
- P.I.D. Electronic digital temperature controller cum indicator is fitted to control the centrifuge temp. from room temp. upto -20°C means shuts off the cooling compressor within accuracy of + 2°C.
- Supply completed with, instruction manual, cord & plug to work on 220 volts 50Hz A.C.
Technical Parameter
| Max. Speed |
20000 R.P.M. |
| Max. RCF |
37570xg |
| Timer |
0-99 Min. |
| Motor |
Brushless Motor |
| Temp. Range |
from room temperature to -20°C |
| Temp. Accuracy |
±2°C |
| Power |
AC 220V 50 Hz 20A |
| Weight |
60 kg. Approx. |
| Dimension |
L-27″ x W-21″ x H-15″ approx. |
Machine comes without rotor heads. Optional rotors can be selected as per customer’s requirements are as under:
| Rotor Type |
Rotor Capacity |
Speed on Rotor (RPM) |
R.C.F. |
| Angle Rotor |
12 x 1.5/2 ml. |
20000 |
37570 xg |
| Angle Rotor |
24 x 1.5/2 ml. |
16000 |
27800 xg |
| Angle Rotor |
8 x 15 ml. |
13000 |
17000 xg |
| Angle Rotor |
6 x 50 ml. |
13000 |
17000 xg |
| Angle Rotor |
4 x 100 ml. |
13000 |
17000 xg |
