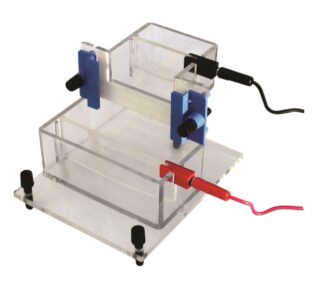

Gel Electrophoresis Tetra Cell Vertical Gel
Model : DVG-2

Model : DVG-2

Specifications

Vertical Electrophoresis Apparatus for Protein application.
It is a 4 Cells system.
Main Tank and Lid are moulded in Single Piece to ensure leak proof performance of Gel. These are made of polycarbonate.
Overall Size :- W x L x H ( in mm) 150 x 115 x 120.
The Electrodes are made of Platinum 99.9% pure.
Voltage require 600 V DC and 500 Watts.
9 Types of Wells are supplied, which are made of Polycarbonate.
Detail of 9 types of Wells is as under :-

Nos of Wells	Well Width	Well Depth 0.75 mm		Well Depth 1.0 mm		Well Depth 1.5 mm
Nos of Wells	Well Width	Vol	20ul	Vol	105ul	Vol	160ul
5	12.7mm	Vol	20ul	Vol	105ul	Vol	160ul
10	5.08mm	Vol	33ul	Vol	44ul	Vol	66ul
15	3.35mm	Vol	20ul	Vol	26ul	Vol	40ul

Moulded Tank	1 No
Moulded Lid	1 No
Gel Casttes for Gel Casting	2 Nos
Silicon Rubber	2 Nos
Gel Dam Plates	2 Nos
Platinum Electrodes	2 Nos.
Red and Black Wire	1 Set
Combs with Wells of Polycarbonate	4 Sets (0.1 & 0.5 mm thick)
