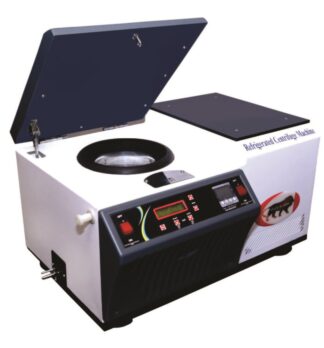

Micro Refrigerated Centrifuge 16000 Rpm, Carbon Motor (-20°C)
Specifications
- Bench Top Refrigerated Micro Centrifuge Machine
- Heavy duty C.R.C. construction finished with powder coating
- Stainless Steel centrifugal bowl for extra protection and easy cleaning.
- Fitted with well balanced universal motor with having carbon brushes.
- CRC free refrigeration.
- 2 lines, 20 characters. LCD Display for set time, run time set and run rpm, rcf.
- Digital Timer 0-59 minutes
- Programmable Speed Regulator from 2000 to 16000 rpm in variation of 100 rpm.
- Safety lid lock.
- P.I.D. Electronic digital temperature controller cum indicator is fitted to control the temperature of centrifuge bowl from room temp. upto -20°C and shuts off the cooling compressor within accuracy of ± 1°C in stand by mode. Means only the centrifuge bowl is cooling and centrifuge motor is in stand by mode.
- Temp. Accuracy when motor is also running is + 2°C
Technical Parameter
| Msx Speed | 16000 RPM |
| Max RCF | 16800 x g |
| Motor | Universal Motor (with carbon brushes) |
| Power | AC 220V 50 Hz 20A |
| Weight | 55 kg Approx |
| Dimensions | L – 25″ x W – 20″ x H – 14″ approx |
Supply complete with following angle rotor heads to accommodate polypropylene micro Centrifuge tubes (eppendorf Tubes as well)
| Rotor Type | Rotor Capacity | Speed on Rotor (RPM) | R.C.F. |
|---|---|---|---|
| Angle Rotor | 12 x 1.5/2.2 ml. | 16000 | 16800 x g |
Adopters to accept 1.5ml Eppendrof micro-centrifuge tubes.
